FAS-DIGI PRO gel documentation system
- Light-sensitive Canon camera with 24 Mpixels and APS-C CMOS-sensor
- Compatible with all common green, yellow and red DNA dyes (LED emission 470nm–520nm)
- Easy-to-use camera studio software
- Fully networkable gel doc system: transfer JPEG and TIFF easily
- Large illuminated imaging area (26 x 21 cm) for multiple agarose gels of various size
- Made in Germany
The Revolution for Nucleic Acid Gel Documentation: The FastGene® FAS-DIGI PRO is our imaging system for the detection of DNA and RNA in agarose gels. The unique Blue/Green LED technology, together with a very easy to use software and a top camera, enables agarose gel documentation of highest quality. The FastGene® FAS-DIGI PRO is a fully networkable Gel Doc System, which enables simple transfer of images when connected to an external PC.
Watch our demo video and see for yourself how easy it is to document your DNA and RNA gels using the FAS-DIGI PRO system. The powerful software allows on-the-fly adjustments in image quality and size and ensures that you always get publication quality images.
Request a demo and try the system out!
Blue/Green LED Technology – for a safe detection of DNA and RNA
The heart of the FAS-DIGI PRO is the revolutionary Blue/Green LED technology.
The FAS-DIGI PRO is composed of a strong Blue/Green LED transilluminator that emits visible light at a wavelength of 470 – 520 nm. In contrast to harmful UV light, no nucleic acids are damaged with Blue/Green LEDs. The Blue/Green LED technology enables the detection of all common green (e.g., MIDORIGreen, SYBRTM Green)), yellow (e.g., SYBRTM Safe) and red (e.g., ethidium bromide or GelRedTM) DNA dyes.
The transilluminators

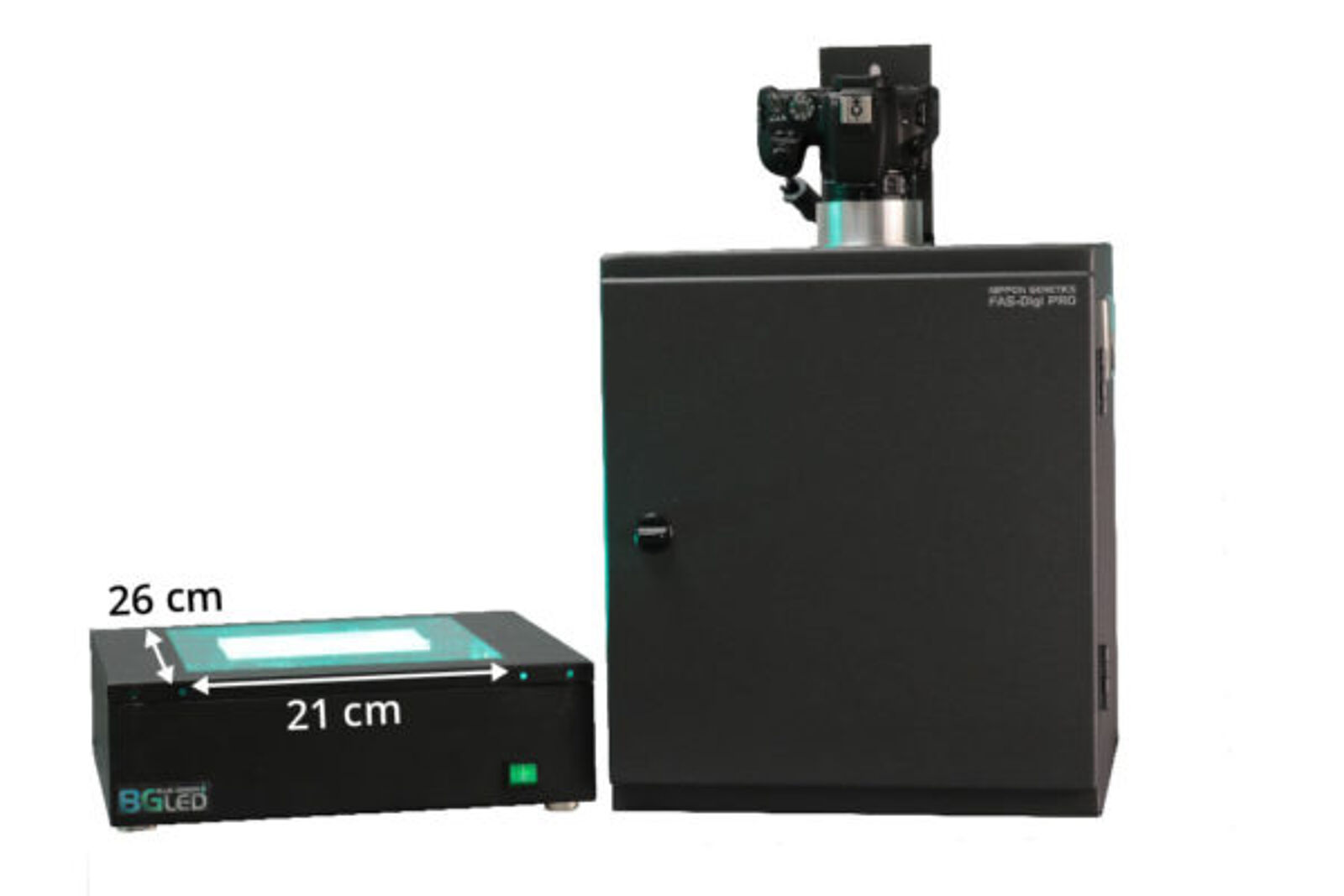

The hood of the FAS-DIGI PRO can be easily removed. This allows a very easy excision of DNA bands on the huge Blue/Green LED illuminated work surface of 21 cm x 26 cm. A superb uniform transillumination is guaranteed by 12 LED arrays at each side.

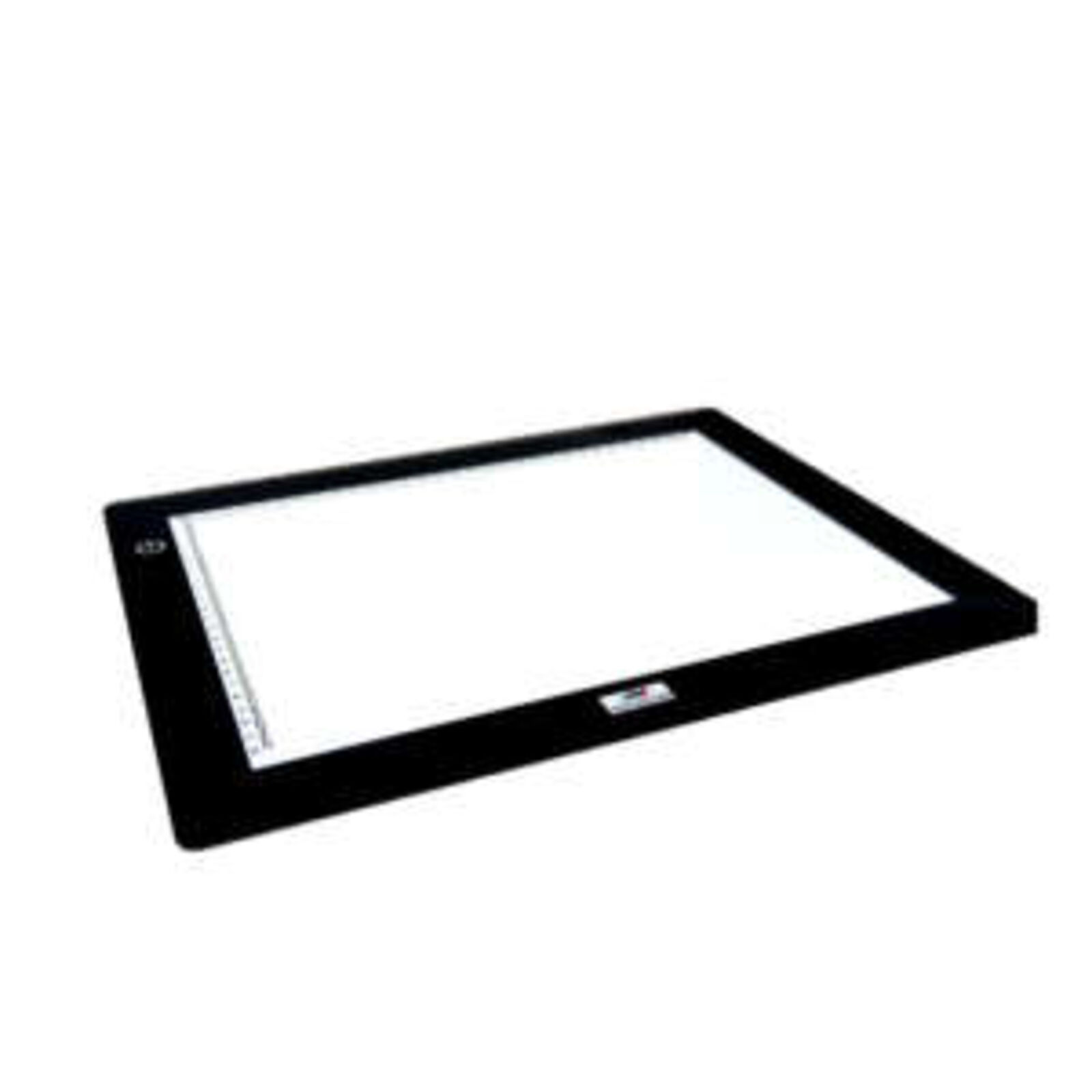

The detection of protein is possible due to the additionally included white LED table which comes with an integrated battery.
The camera

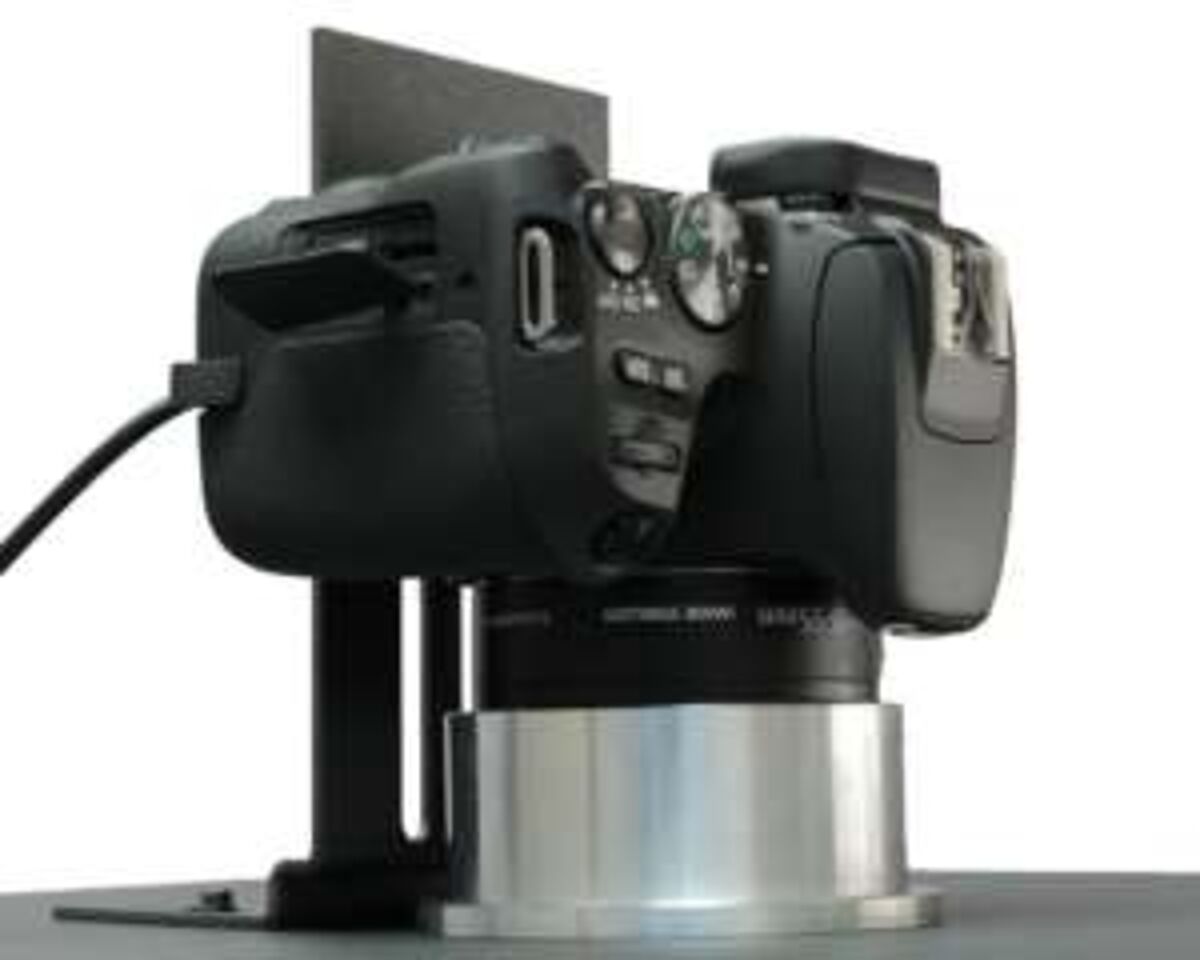

The very light-sensitive Canon camera has a very large APS-C CMOS sensor.
The camera is connected directly to the power supply system of the FAS-DIGI PRO and is thus constantly supplied with power.
The imaging software

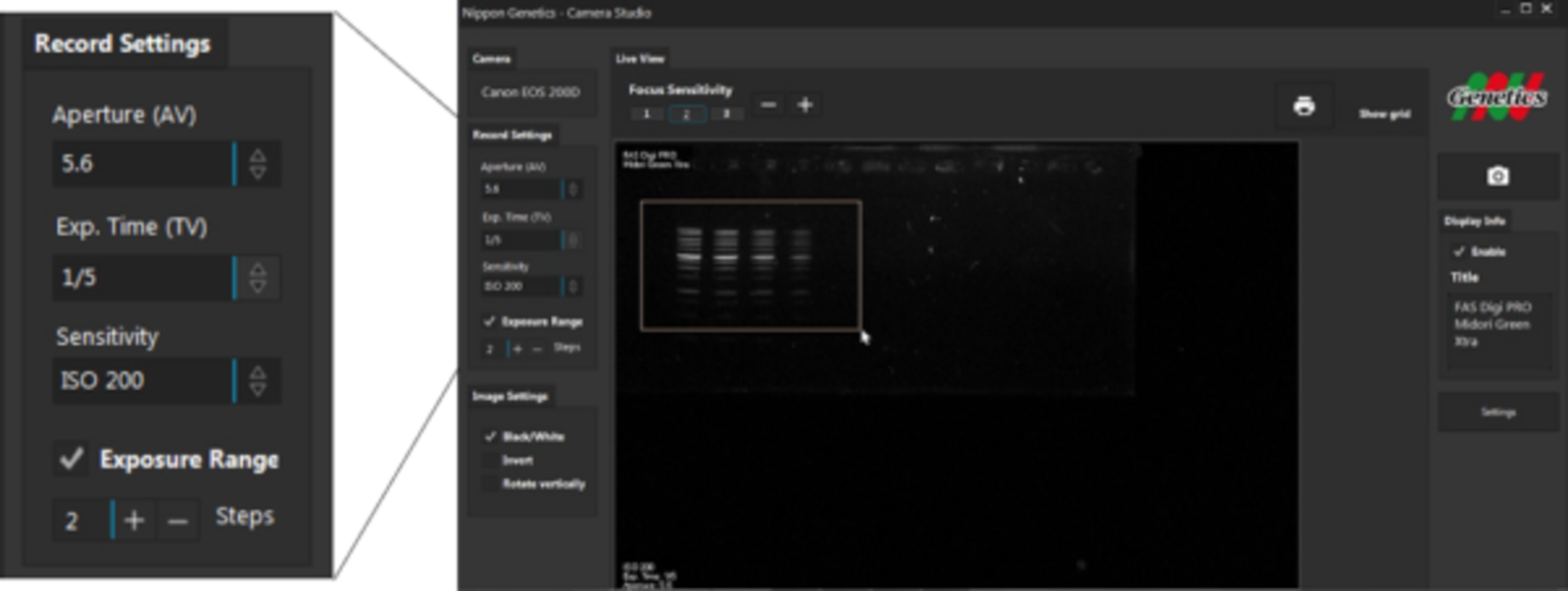

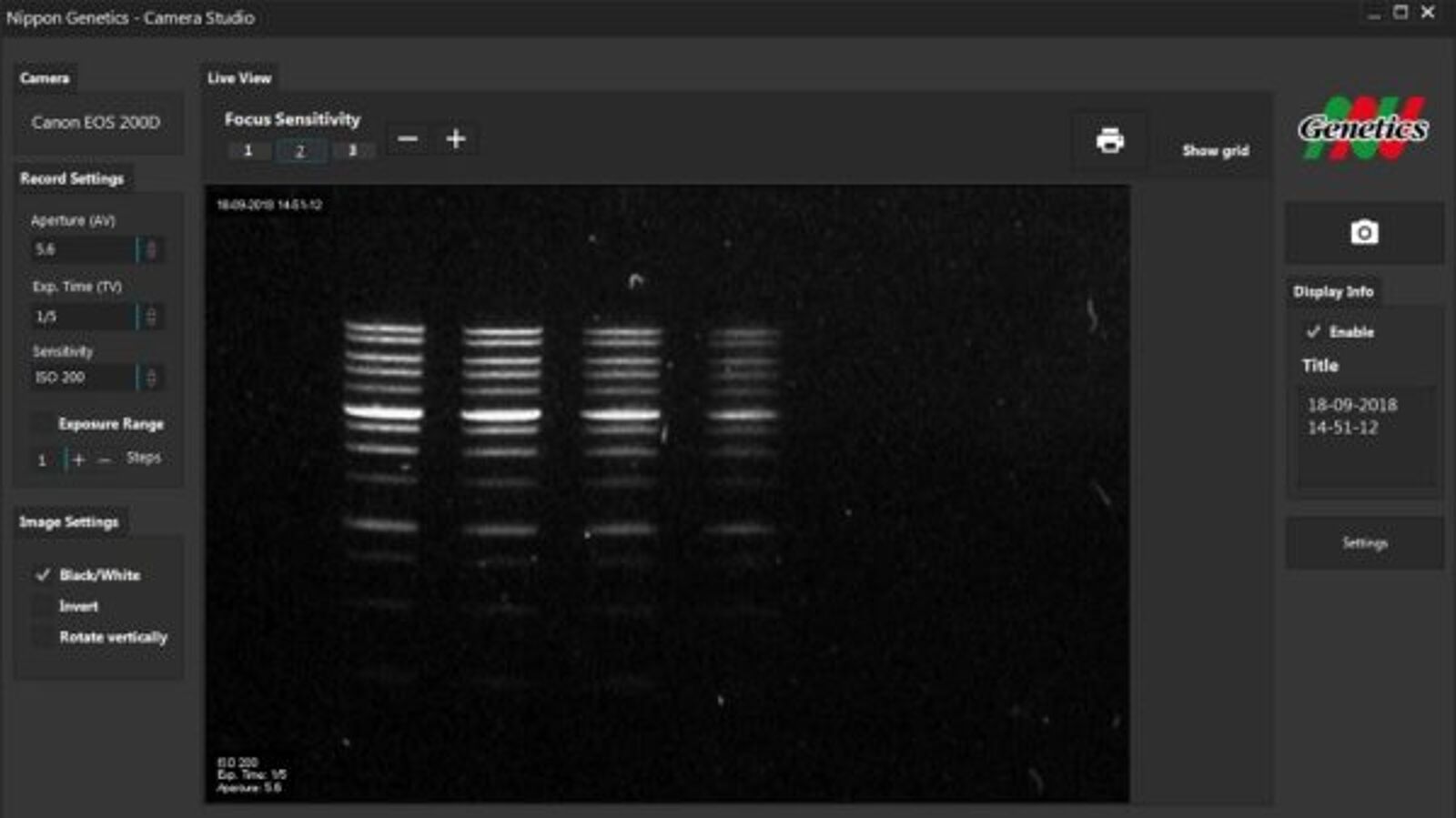

The FAS-DIGI PRO is delivered together with the intuitive NIPPON Genetics Camera Studio software. This software enables the optimization of all important camera settings (aperture, exposure time, zoom and focus) in real time.
Specifications
- Camera
| Camera type | Canon 250D, 24 MPixel (Resolution: 6000×4000), APS-C Sensor DIGIC 8 Processor, WiFi enabled |
| Image Sensor | APS-C sized CMOS Sensor |
| Resolution/Image Size | 6000 x 4000 pixel (24 MPixel) |
| Bit Output Format | 8-bit |
| Aperture | F/4-5.6 |
| Lens | 18-55 mm zoom Lens, manual |
| Exposure time | 0.00025 to 30 seconds |
| Filter | FastGene Amber Filter for the lens |
- Control Software
| Control Software | NIPPON Genetics Camera Studio v1.0, WINDOWS 10 |
| Saved Image Format | TIFF, JPEG |
| Image storage | Host computer dependent |
| Interface | Host computer dependent. |
- Hood
| Power unit | Power supply for transilluminator and camera |
| Access | Front door, 180°opened |
| Filter | FastGene Amber Filter Shield |
- Illuminator
| 1) Built-in Blue-Green light source | 470-520 nm |
| View Area | 26 x 21 cm |
| 2) White LED Transilluminator | |
| View Area | 22 x 16 cm |
- Unit
| Material | Painted aluminum metal |
| Rated Voltage | 100-240 V~, 50/60 Hz, A |
| Dimension (H x L x W) | 57 x 35 x 32.5 cm |
| Weight | 14 kg |
